Details

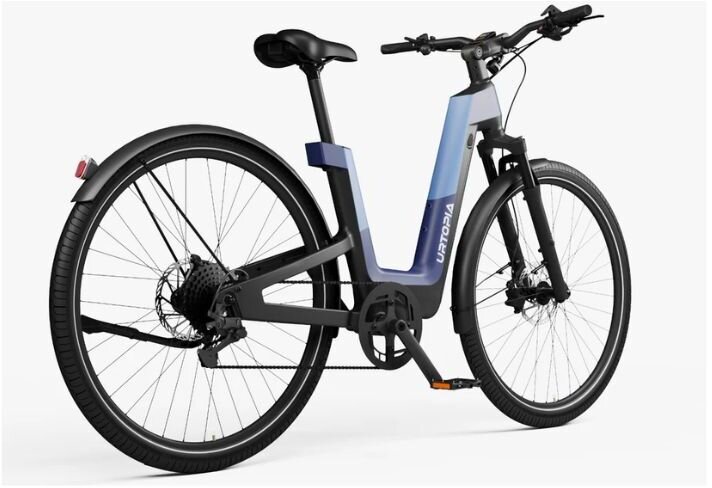

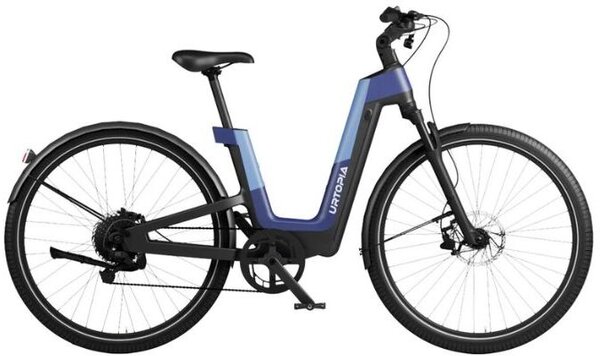

Sleek lines, carbon fiber elegance, and the power to roam-Fusion Pro looks as good as it rides. Glide through nature, feel the breeze, and rediscover the joy of effortless exploration.
Fusion Pro is built for all-day comfort. The low-step frame makes getting on and off effortless, while the 60° adjustable handlebar lets you ride in a natural, upright position. Designed to do more than just get you from point A to B. Fusion Pro supports up to 330 lbs of total payload, making it ideal for riders of all sizes and those who need to haul gear, groceries, or even camping equipment.
Net Weight: 48lbs w/o acc.
Material: Carbon fiber frame
Range Up to 75 miles
Extended to 120miles (Dual battery)
*A 180-lb rider using ECO mode on flat roads.
*A 180-lb rider using ECO mode on flat roads.
Top Speed: 20mph by default, 25mph upon unlock
Total Weight: Limit 330 lbs
Rider Height: 5’3’’ - 6’3’’
Brakes: TEKTRO hydraulic disc brakes with power cut-off sensor
Wheels: Kenda 29’’×2.05’’, puncture-proof tire
Water Resistance: IP65
Ebike System
Class 2 by default
Class 3 upon unlock
Motor: 1000W (peak) rear hub, 60Nm
Throttle: Yes (up to 20mph)
Battery: 529.2Wh seat post battery, certified to UL-2271, removable battery
Pedal Assist: 4 levels
Charger: 3.5H fast charger
Sensors: Torque sensor
Lights Front: External front light, 40 Lux
Rear: StVZO rear light (Not ARES lights)
Display: LCD Color display
Drivetrain
Chainrings: 44T
Crankset: Aluminum alloy, 170mm
Cassette: 11-40T, 8 Speed
Chain: YBN S8e, Silver
Rear Derailleur: Shimano ACERA 8-Speed
Shift Lever: 8 Speed Trigger
Pedals: 9/16' Alloy Platform
Cockpit
Handlebar: Aluminum, extender 0-60° adjustable
Fork: ZOOM 188NS AMS 700C Suspension fork 60mm travel
Grips: Durable ergonomic Grips, lockable
Seat Post: Aluminum Alloy, f31.6mm
