Details

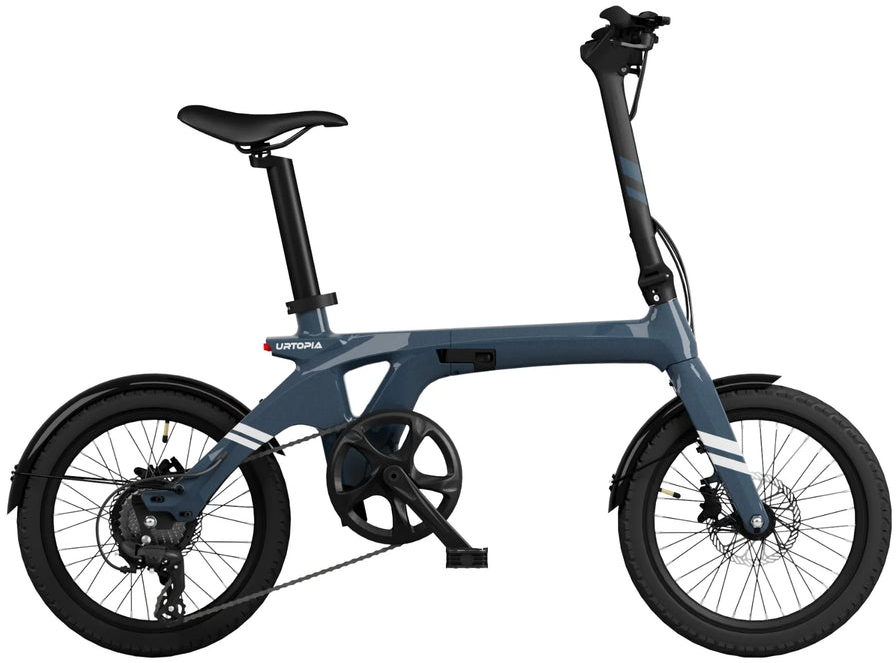

Lightweight, easy to ride, and sleek—Carbon Fold 1 embodies these qualities. With premium Carbon Fiber and Urtopia’s design, it continues the legacy chosen by hundreds of thousands of Urtopians.
- Recommended rider height: 5'1" - 6'1"
Lightest E-Bike, Only 29 lbs
Thanks to the lightweight nature of carbon fiber, both the e-bike frame and handlebars are made from this material. This makes it easy to carry it up and down stairs and effortlessly lift it out of your car trunk.
Carbon Fiber Expert
Lightweight, easy to ride, and sleek—Carbon Fold 1 embodies these qualities. With premium Carbon Fiber and Urtopia’s design, it continues the legacy chosen by hundreds of thousands of Urtopians.
It fits where others can’t
The trunk of a typical SUV can fit 2-3 Carbon Fold 1 bikes, making it the perfect companion for driving to the park for a ride-absolutely space-efficient.
2 Step Folding
It folds in 30 seconds with just two steps, making it simple and space-saving.
Effortlessly smooth to ride
Easy to ride with adjustable sizing for a perfect fit—ride comfortably and keep your feet grounded. The torque sensor delivers an ultra-smooth riding experience.
Sleek Design, Hidden Power
The taillight and headlight are seamlessly integrated with the bike frame, along with hidden wiring and battery design, giving the Carbon Fold 1 a sleek, minimalist look.
A bike, cargo, and more!
This versatile foldable e-bike meets all your needs, with accessories for kids, cargo, pets, and leisure. Whether commuting, running errands, or exploring, it effortlessly adapts to your lifestyle, offering convenience and endless possibilities.
One Size | |
---|---|
Recomm. rider height | 5’1" - 6’1" |
A. Adjustable seat range | 220 mm |
B. Highest point of the seat post | 1020 mm |
C. Overall length | 1480 mm |
D. Handlebar grips height | 1090 mm |
E. Headset height | 400 mm |
F. Seat tube length | 310 mm |
G. Wheel diameter | 450 mm |
H. Wheelbase | 1000 mm |
I. Height after folding | 680 mm |
J. Overall length after folding | 800 mm |
K. Standover height | 550 mm |
Specs
Frame | Carbon fiber (frame, fork) |
---|---|
Fork | Carbon fiber (frame, fork) |
Wheels | Kenda 18" x 2.0" |
Chainrings | 53T |
Rear Derailleur | Shimano Altus 8-Speed |
Cassette/Freewheel | 11-32T, 8 Speed |
Chain | Chain KMC Z7 |
Brakes | TEKTRO hydraulic disc brakes |
Accessories & Extras | External headlights 160LM, Integrated rear lights |
Motor | Peak 500W hub motor, 42Nm |
Battery | 36V 7Ah (252 Wh) seat post battery |
Controller/Display | Color display |
Charger | 3H fast charger, 42V 2Amp |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Aegean Blue / One Size / 18-inch | 810139110118 | BC1F-02-BU-M-US | 210000000842 |
