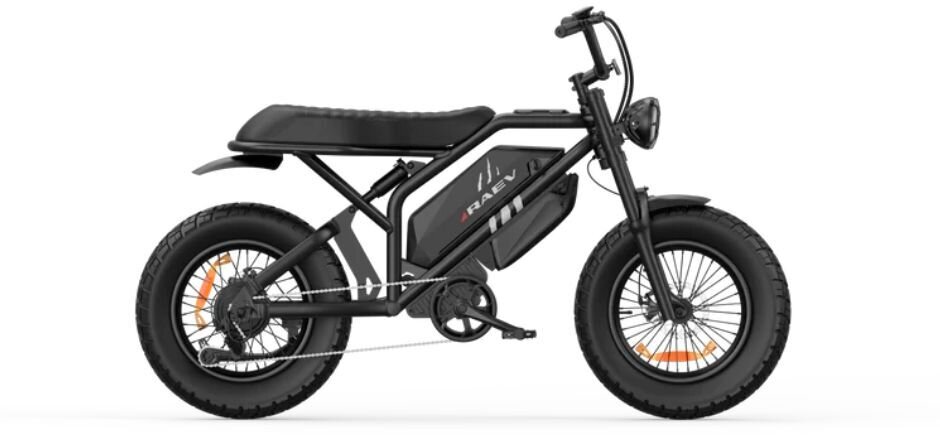

RAEV Bullet GTX

RAEV Bullet GTX
$2,499.00
$2,999.00
Please select options Unavailable

Details

The GTX takes the classic GT design to new heights, delivering an even more electrifying experience. Retaining the motorcycle spirit, our new model boasts enhanced power, pushing boundaries with a stellar performance. Get ready to ignite your ride and embrace the exhilaration of the GTX.

Equipped with Samsung 21700 cells, the GTX harnesses the power of dual battery technology. Experience the freedom to explore as you effortlessly cover impressive distances of up to 40 miles using throttle only at max settings. With unwavering power and reliability, the GTX allows you to embark on limitless adventures while ensuring a seamless ride.

  • Top Speed: Classes 1/2 20MPH, Class 3: 28MPH
  • Range: 50+ Miles in Class2 Throttle-Only; 100+ Miles in Class1 PAS
  • Motor: 52V Brushless Rear Hub Motor
  • Battery: 52V20Ah Battery + 52V8Ah Battery (Samsung 21700 Cells)
  • Brakes: 4-Piston RAEV Hydraulic Disc Brakes w/ Electric Cut-Off Sensor
  • Tires: Vee E-Huntsman 20" * 4.0" Dual-Sport Fat Tire
  • Throttle: Thumb Twist Throttle
  • Max Payload: 330lbs
  • Front Suspension: Hydraulic Suspension, 60mm Travel w/ Lockout & Adjustment
  • Rear Suspension: Fastace Dual Chamber Air Shock

ELECTRONICS

  • Charger: 52V3A Fast Charger (Included)
  • Charging Time: 20Ah Battery: 7 Hours, 8Ah Battery: 2.5 Hours
  • Display: Easy Read 2.2” LCD Display
  • Controller: 52V 30A 12 Enhanced MOSFET
  • Front Light: Moto Style Round Headlight, 120 LUX
  • Rear Light: Integrated Taillight w/ Brake Light
  • Pedal Assist: 3 Levels
  • Sensors: Speed Sensor
  • Horn: Yes

COMPONENTS

  • Brake Pads: Ceramic Brake Pads
  • Brake Rotors: 180mm Stainless
  • Frame: 6061 Aluminum Alloy
  • Pedal: 9/16”Alloy, Composite Platform Pedals w/ Reflectors
  • Crankset: 160mm Crank Length, 52T Chainring
  • Gears: Single Speed
  • Chain: 132 Links
  • Rim: Double Wall Aluminum 36H Front & Rear
  • Spokes: Black Stainless 13-Gauge Front/ 12-Gauge Rear
  • Stem: Aluminum D31.8 * H42mm
  • Handlebars: Aluminum 680mm Wide
  • Grips: Durable Ergonomic Grips
  • Hubs: 36H Disc Thru-axle Front, Nutted Rear

GEOMETRY

  • Suitable Height: Up to 6'4"
  • Seat Height: 32.7”
  • Bike Height: 42.9”
  • Wheelbase: 46.7”
  • Total Length: 70”
  • Handlebar Width: 27.2”
  • Bike Weight: 85-81.5lbs (with Battery)
  • Battery Weight: 52V8Ah
  • Battery: 6lbs, 52V20Ah
  • Battery: 11lbs
  • Payload Capacity: 330lbs
