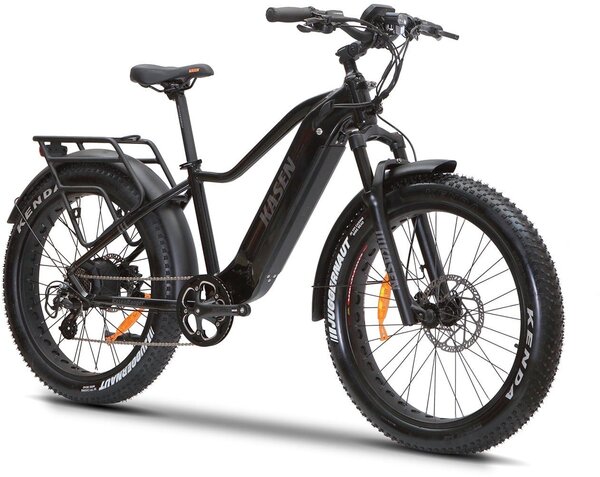

Kasen Ranger

Kasen Ranger
  • Color: Black
  • Color: Black
  • Color: Blue
  • Color: Sand
This item is currently not available.


For those who want a 26" fatty ebike with a powerful motor, huge battery, high quality components, at an excellent price, the Ranger is our best ebike option. Come test tide the Ranger at E Bike Cyclery today.

  • MOTOR  1250W (Peak) 1000W (Sustained), 48V Brushless Rear Hub BAFANG Motor
  • BATTERY Removable Internal Lithium-ion 48V ,15AH (720WH)/20AH (960WH) SAMSUNG
  • CHARGER 48V 3.0 Amp Smart Charger, 4-7 Hour Charge Time
  • DISPLAY CloudDrive CDC6-PR02 Backlit LCD Display with USB
  • CONTROLLER 48V, 1000W Frame-integrated Controller
  • THROTTLE Thumb Throttle
  • PEDAL ASSIST Intelligent 5 level pedal assist with 24 magnet cadence sensor
  • Head Light  High output 80 LUX LED Headlight
  • Wiring Water resistant connectors and wiring harness
  • FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery
  • FORK Hydraulic Fork, 100mm Travel, with lockout and preload adjustment
  • BRAKE Tektro 203mm Front & 180mm Rear Hydraulic Disc Brake
  • SPEED GEARS Shimano 7 Speed Shifter
  • CASSETTE Shimano 14T-28T Cassette
  • CHAIN WHEEL KMC Rust Resistrant Chain
  • CRANKSET Prowheeel 46T 175mm Crankset
  • HANDLEBARS  Aluminum 31.8mm, 700mm Back Sweep 6 Degree
  • GRIPS Durable Ergonomic Grips
  • STEM Aluminum Alloy, 0-60 Degree Rise, 108mm Length, 31.8mm
  • WHEEL RIM Double Wall Aluminum 36h Front & Rear
  • TIRES KENDA 26X4.0 Front & Rear Tires
  • SADDLE Kasen Comfortable
  • PEDALS Wellgo Aluminum Alloy pedals
  • REAR RACK  55lbs Rated Loading Weight with Pannier Side Mount
  • MUDGARD   Full coverage front and rear
  • SEAT POST   Aluminum Alloy 31.8mm 350L
  • SEAT CLAMP Quick Release
  • SPEED Up to 28 MPH on Pedal Assist and 25 MPH on Throttle
  • RANGE  45-55 miles
  • CHARGE   4-7 Hour Charge Time
  • WEIGHT 80 LBS
  • WEIGHT LIMIT Maximum payload capacity 275 lbs
